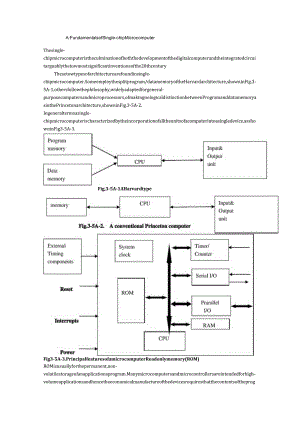

A:FundamentalsofSingle-chipMicrocomputerThesingle-chipmicrocomputeristheculminationofboththedevelopmentofthedigitalcomputerandtheintegratedcircuitarguablythetowmostsignificantinventionsofthe20thcenturyThesetowtypesofarchitecturearefoundinsingle-chipmicrocomputer.Someemploythesplitprogram/datamemoryoftheHarvardarchitecture,showninFig.3-5A-1,othersfollowthephilosophy,widelyadaptedforgeneral-purposecomputersandmicroprocessors,ofmakingnologicaldistinctionbetweenProgramanddatamemoryasinthePrincetonarchitecture,showninFig.3-5A-2.Ingeneraltermsasingle-chipmicrocomputerischaracterizedbytheincorporationofalltheunitsofacomputerintoasingledevice,asshowninFig3-5A-3.Fig,3-5A-1AHarvardtypeFig3-5A-3.PrincipalfeaturesofamicrocomputerReadonlymemory(ROM)ROMisusuallyforthepermanent,non-volatilestorageofanapplicationsprogram.Manymicrocomputersandmicrocontrollersareintendedforhigh-volumeapplicationsandhencetheeconomicalmanufactureofthedevicesrequiresthatthecontentsoftheprogrammemorybecommittedpermanentlyduringthemanufactureofchips.Clearly,thisimpliesarigorousapproachtoROMcodedevelopmentsincechangescannotbemadeaftermanufacture.Thisdevelopmentprocessmayinvolveemulationusingasophisticateddevelopmentsystemwithahardwareemulationcapabilityaswellastheuseofpowerfulsoftwaretools.SomemanufacturersprovideadditionalROMoptionsbyincludingintheirrangedeviceswith(orintendedforusewith)userprogrammablememory.Thesimplestoftheseisusuallydevicewhichcanoperateinamicroprocessormodebyusingsomeoftheinput/outputlinesasanaddressanddatabusforaccessingexternalmemory.ThistypeofdevicecanbehavefunctionallyasthesinglechipmicrocomputerfromWhichitisderivedaIbeitWithrestrictedI/Oandamodifiedexternalcircuit.TheuseoftheseROMlessdevicesiscommoneveninproductioncircuitswherethevolumedoesnotjustifythedevelopmentcostsofcustomon-chipROM2;therecanstillbeasignificantsavinginI/Oandotherchipscomparedtoaconventionalmicroprocessorbasedcircuit.MoreexactreplacementforROMdevicescanbeobtainedintheformofvariantswith,piggy-back,EPROM(ErasableprogrammableROM)socketsordevicesW汕EPROMinsteadofROM.ThesedevicesarenaturallymoreexpensivethanequivalentROMdevice,butdoprovidecompIetecircuitequivalents.EPROMbaseddevicesarealsoextremelyattractiveforlow-volumeapplicationswheretheyprovidetheadvantagesofasingle-chipdevice,intermsofon-chipI/O,etc.,withtheconvenienceofflexibleuserprogrammability.Randomaccessmemory(RAM).RAMisforthestorageofworkingvariablesanddatausedduringprogramexecution.Thesizeofthismemoryvarieswithdevicetypebutithasthesamecharacteristicwidth(4,8,16bitsetc.)astheprocessor,Specialfunctionregisters,suchasstackpointerortimerregisterareoftenlogicallyincorporatedintotheRAMarea.ItisalsocommoninHardtypemicrocomputerstotreattheRAMareaasacollectionofregister;itisunnecessarytomakedistinctionbetweenRAMandprocessorregisterasisdoneinthecaseofamicroprocessorsystemsinceRAMandregistersarenotusuallyphysicallyseparatedinamicrocomputer.Centralprocessingunit(CPU).TheCPUismuchlikethatofanymicroprocessor.Manyapplicationsofmicrocomputersandmicrocontrollersinvolvethehandlingofbinary-codeddecimal(BCD)data(fornumericaldisplays,forexample),henceitiscommontofindthattheCPUiswelladaptedtohandlingthistypeofdata.Itisalsocommontofindgoodfacilitiesfortesting,settingandresettingindividualbitsofmemoryorI/Osincemanycontrollerapplicationsinvolvetheturningonandoffofsingleoutputlinesorthereadingthesingleline.Theselinesarereadilyinterfacedtotwo-statedevicesSuchasswitches,thermostats,solid-staterelays,valves,motor,etc.Parallelinput/output.Parallelinputandoutputschemesvarysomewhatindifferentmicrocomputer;inmostamechanismisprovidedtoatleastallowsomeflexibilityofchoosingwhichpinsareoutputsandwhichareinputs.Thismayapplytoallorsomeoftheports.SomeI/Olinesaresuitablefordirectinterfacingto,forexample,fluorescentdisplays,orcanprovidesufficientcurrenttomakeinterfacingothercomponentsstraightforward.SomedevicesallowanI/Oporttobeconfiguredasasystembustoallowoff-chipmemoryandI/Oexpansion.Thisfacilityispotentiallyusefulasaproductrangedevelops,Sincesuccessiveenhancementsmaybecometoobigforon-chipmemoryanditisundesirablenottobuildontheexistingsoftwarebase.Serialinput/output.Serialcommunicationwithterminaldevicesiscommonmeansofprovidingalinkusingasmallnumberoflines.Thissortofcommunicationcanalsobeexploitedforinterfacingspecialfunctionchipsorlinkingseveralmicrocomputerstogether.Boththecommonasynchronoussynchronouscommunicationschemesrequireprotocolsthatprovideframing(startandstop)information.ThiscanbeimplementedasahardwarefacilityorU(三)ART(Universal(Synchronous)asynchronousreceiver/transmitter)relievingtheprocessor(andtheapplicationsprogrammer)ofthislow-level,time-consuming,detail,tismerelynecessarytoselectedabaud-rateandpossiblyotheroptions(numbcrofstopbits,parity,etc.)andload(orreadfrom)theserialtransmitter(orreceiver)buffer.Serializationofthedataintheappropriateformatisthenhandledbythehardwarecircuit.TimingZcounterfacilities.Manyapplicationofsingle-chipmicrocomputersrequireaccurateevaluationofelapse
